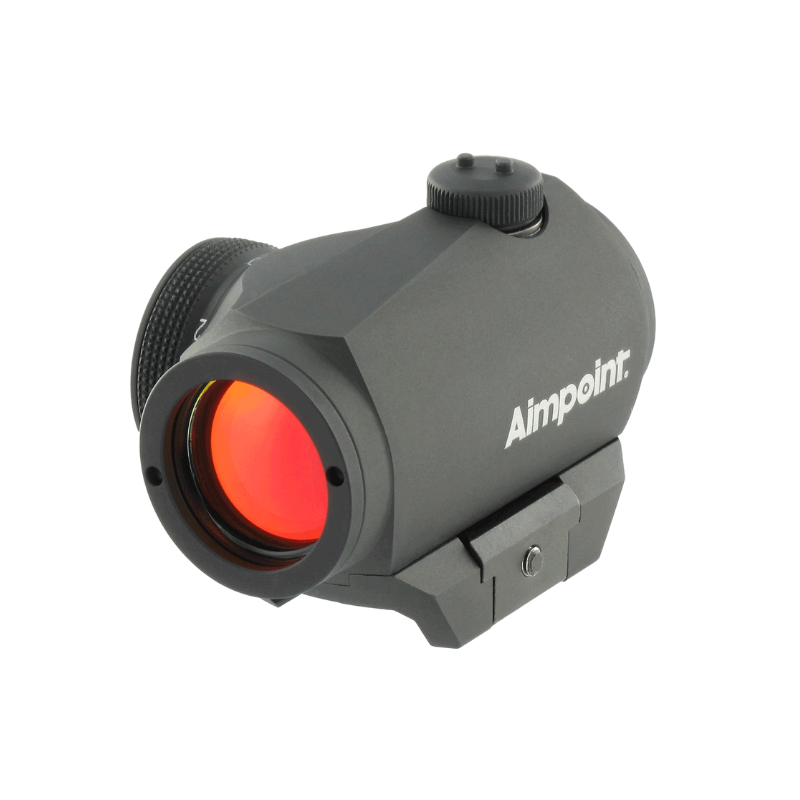

The Aimpoint® Micro H-1 was designed with the hunter in mind. These sights are the lightest red dot sights tough enough to carry the Aimpoint name. Since its introduction in 2007, the Micro H-1 has become a very popular hunting sight worldwide due to its size, light weight and robust build quality. The Aimpoint Micro H-1 is also available as an alternative configuation with Blaser original saddle mount. Micro H-1 with Blaser mount, Art.No. 200090.
UNIQUE FEATURES
- Lightweight – 84 g without mount and 105 g with mount
- Integral Weaver-style base allows easy attachment
- ACET technology allows 50,000 hours of operation on one battery
- Available in 2 dot sizes (2 and 4 MOA)
- Fully waterproof
- Patent pending mount is keyed to the sight body to absorb recoil
- Precision adjustment for windage and elevation: top of protective caps fits into holes on adjustment screws – no other tool required

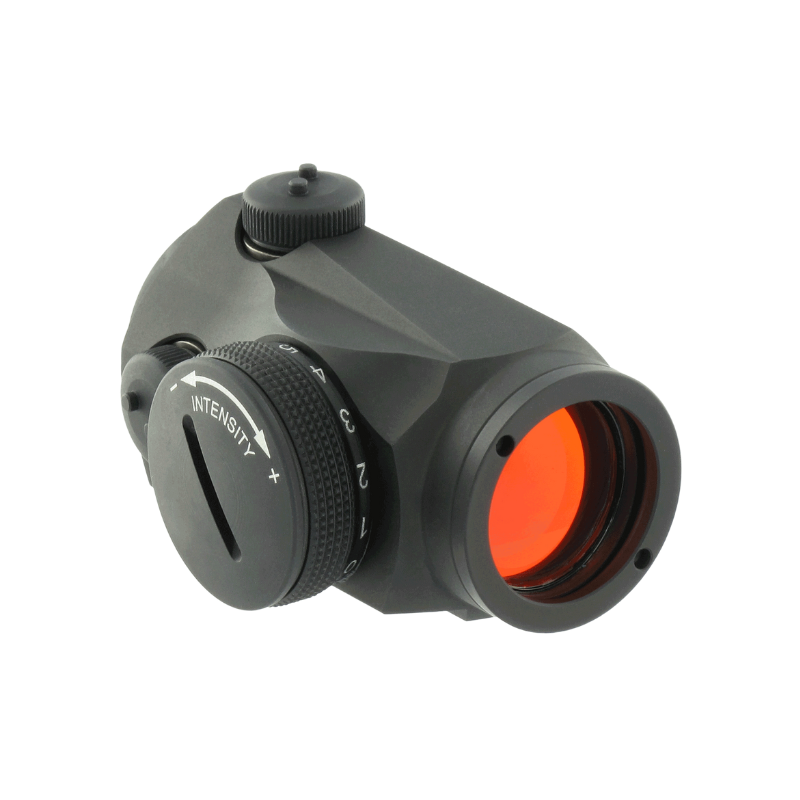

- 12 settings for use in daylight and low light conditions
OPTICAL SPECIFICATIONS
- Operating principle: Reflex collimator sight with LED
- Optical magnification: 1x
- Aiming dot size: 2 or 4 MOA
- Dot intensity: Visible against a background luminance of 0.1 to 55 000 lx
- Dot color: Peak Wavelength: 650 ± 10 nm
- NVD compatible: No
- Optical coating: Anti-reflex, all surfaces and multi-layer.
- Clear aperture: 20 mm
- Eye relief: Unlimited
POWER SOURCE
- Battery type: 3V lithium battery, type CR2032.
- Battery life – Day time use: 50 000h (over 5 years of continuous use)
- Power intensity: 1 Off position and 12 daylight settings
- PHYSICAL SPECIFICATIONS
- Length sight only: 62 mm (2 7/16″)
- Length conf: 69 mm (2 7/16″)
- Width: 41 mm (1 9/16″)
- Height sight only: 36 mm (1 3/8″)
- Height conf: 41 mm (1 9/16″)
- Weight sight only (incl battery): 84 g, ( 3,0 oz)
- Weight conf: 116 g (4,1 oz) incl lens covers and mount
- Housing material: High strength Aluminum
- Housing finish and color: Semi-matte black
- Material mount and spacer std conf: High strength Aluminum
- Surface treatment: Anodized, semi matte
- Height of optical axis – sight and mount: 18 mm (11/16″) over top surface of Picatinny/Weaver Rail
- Height of optical axis – sight, mount and Micro spacer XX: Spacer low: 48 mm (1 7/8″) over top surface of Picatinny/Weaver Rail
- Height of optical axis – sight, mount and Micro spacer ZZ: Spacer high: 57 mm (2 3/16″) over top surface of Picatinny/Weaver Rail
- Adjustment: Range ±1 m at 100 meters (±1 yds at 100 yds) in windage and elevation, 1 click = 13 mm at 100 meters = 10 mm at 80 meters = 7/16″ at 100 yds
ENVIRONMENTAL SPECIFICATIONS
- Temperature range operation: -30°C to 60°C (-20°F to 140°F)
- Temperature range storage: -51°C to 71°C (-60°F to 160°F)
- Temperature shock: Operable after a temperature shock between -45°C and +71°C. Duration: 4h of Hot +71°C, 4h of Cold -45°C. Cycling: 3 times
- Humidity: Operates despite humidity. Limits: RH: 95%, Temp: 20ºC to 50 ºC, cyclic
- Immersion, static: Submersible to 15 ft, 5 m
- Shock: The unit is operable before and after shock. Limits: X-axis: 500 g, 0.7 – 1.1 ms (3 shocks), Y-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction, Z-axis: 40g ±4g, 11 ±1ms, 2 shocks in
- each direction. Functional during exposure (room temperature)
- Vibration: The unit operates despite vibration. Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ±1.587 mm, Frequency: 30-150 Hz. 5.75 g, 1 octave/min
- Chemical resistance: Withstands occasional contamination of: Hydraulic oil (FSD 8407, Tryckolja 021), Lubricating oil (FSD 8127, Motorolja 5W/30), Lubricating oil (FSD 8220, Smörjfett 220), Lubricating oil (Break Free), Fuels (FSD 8612, Diesel fuel oil), Solvents/cleaning (FSD)
