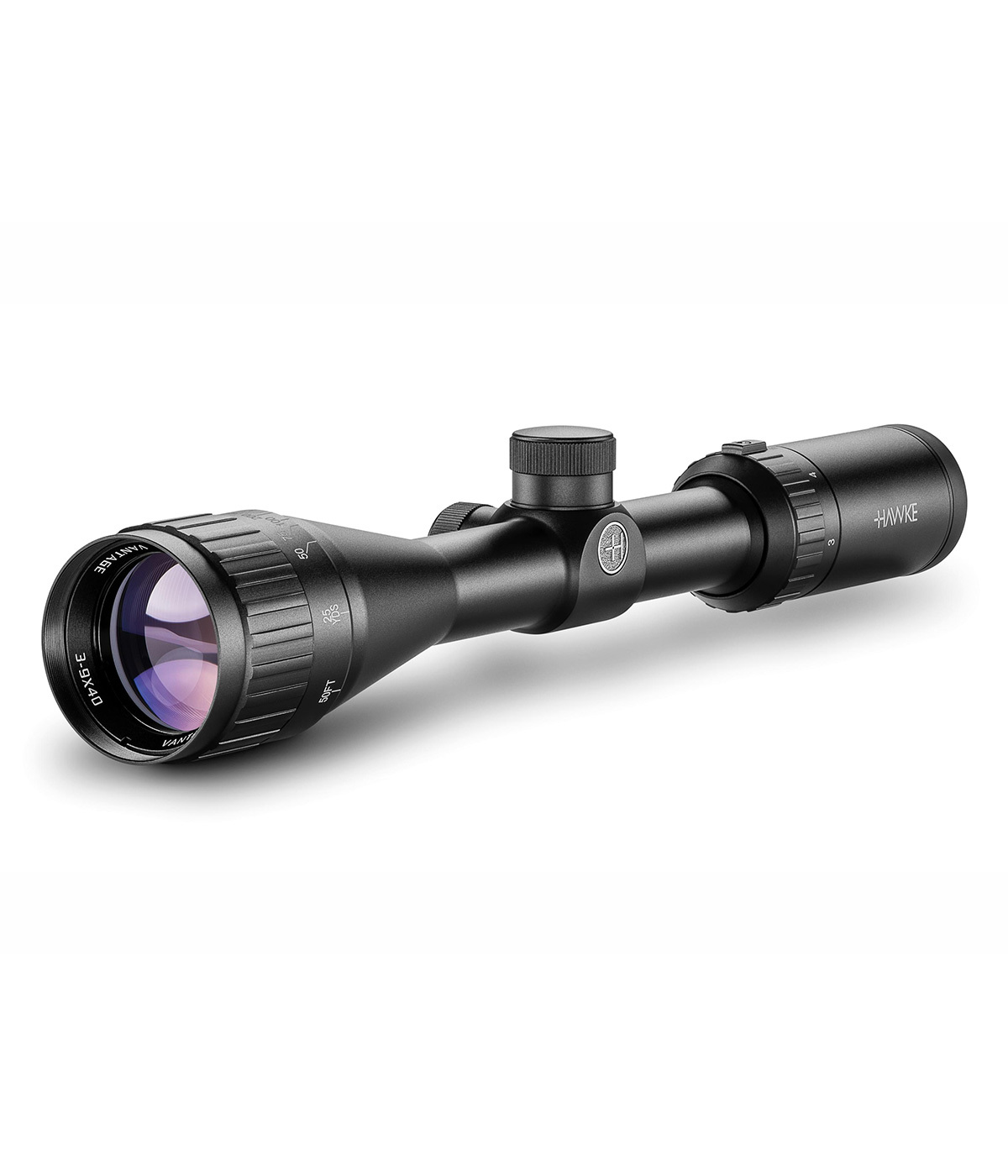

VANTAGE 3-9×40 AO MIL DOT
- 11 layer fully multi-coated optics for excellent clarity
- Adjustable objective for parallax correction
- 1 inch mono-tube chassis for superior strength
- ¼ MOA low profile no-snag fingertip turrets
- Fast focus eyebell and high torque zoom ring
- Threaded objective/ocular for optional accessories
- Model: 14 123
OVERVIEW
- Chassis:1″ Mono-tube
- Optical System:3-9×
- Objective:40mm
- Reticle:Mil Dot
- Illumination:N/A
- Focus/Parallax:Adjustable Objective – 9m / 10yds to Infinity
- Field of View: m @100m / ft @100yds13 – 4.2m / 39 – 12.7ft
- Eye relief:89mm / 3.5″
- Length:322mm / 12.7″
- Weight:482g / 17oz
- Waterproof, Shockproof, Nitrogen purged.
- All calibre rated.
RETICLE INFORMATION
MIL DOT RETICLE
- The classic Mil Dot features multiple aim points for hold-over and hold-under. Accurate mil spacing on 10x, featuring 4 Mil Dots in each direction.
SPECIFICATION
- Material:Aluminium
- Exit Pupil:13 – 4mm / 0.5 – 0.1″
- Ocular Type:Fast Focus
- Lens Coating:Fully Multi-Coated – 11 Layers
- Power Selector Style:Knurled Posi-Grip
- Focal Plane:Second Focal Plane (SFP)
- Warranty:Hawke Worldwide Warranty
- Elevation Increment:¼ MOA
- Elevation Adjustment Range:100 MOA
- Windage Increment:¼ MOA
- Windage Adjustment Range:100 MOA
- Turret Caps:YES
- Turret Type:Low Profile
SUPPLIED WITH
- Elasticated Lens Covers
- Lens Cloth
