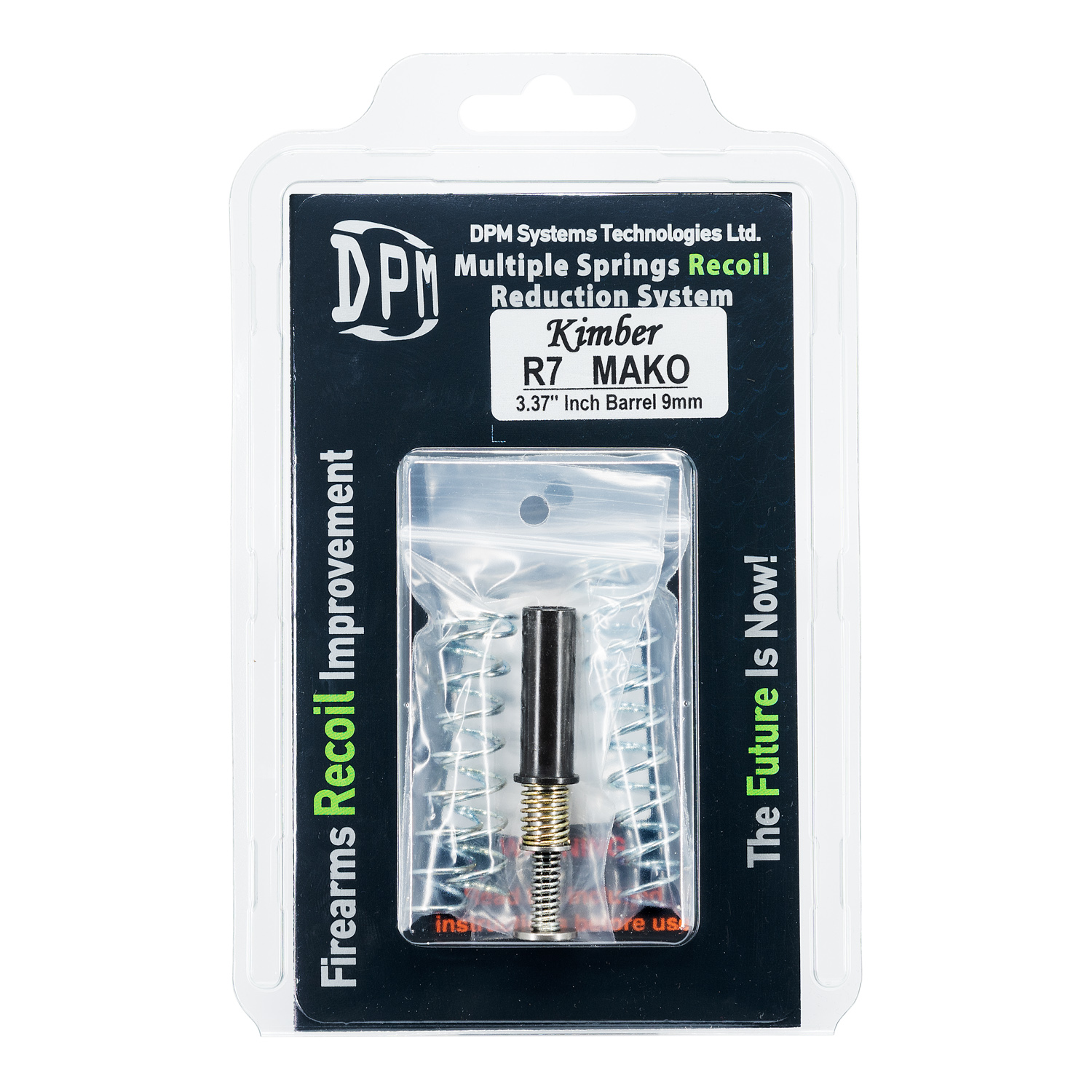

DPM Telescopic Recoil Reduction System for KIMBER R7 MAKO
The Telescopic Recoil System is a direct replacement for the stock recoil rod and does not change the configuration of the pistol. This system works due to the multi spring intricate rod (3 springs) and controls the functionality of the pistol, using more efficient the small internal space of the subcompact pistols.

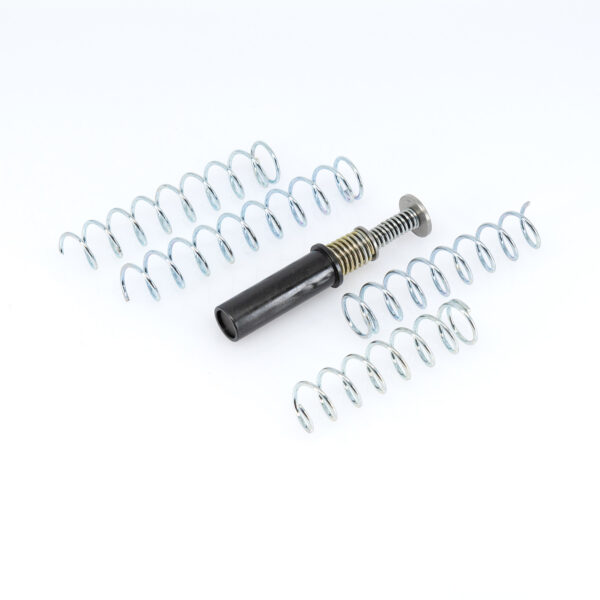

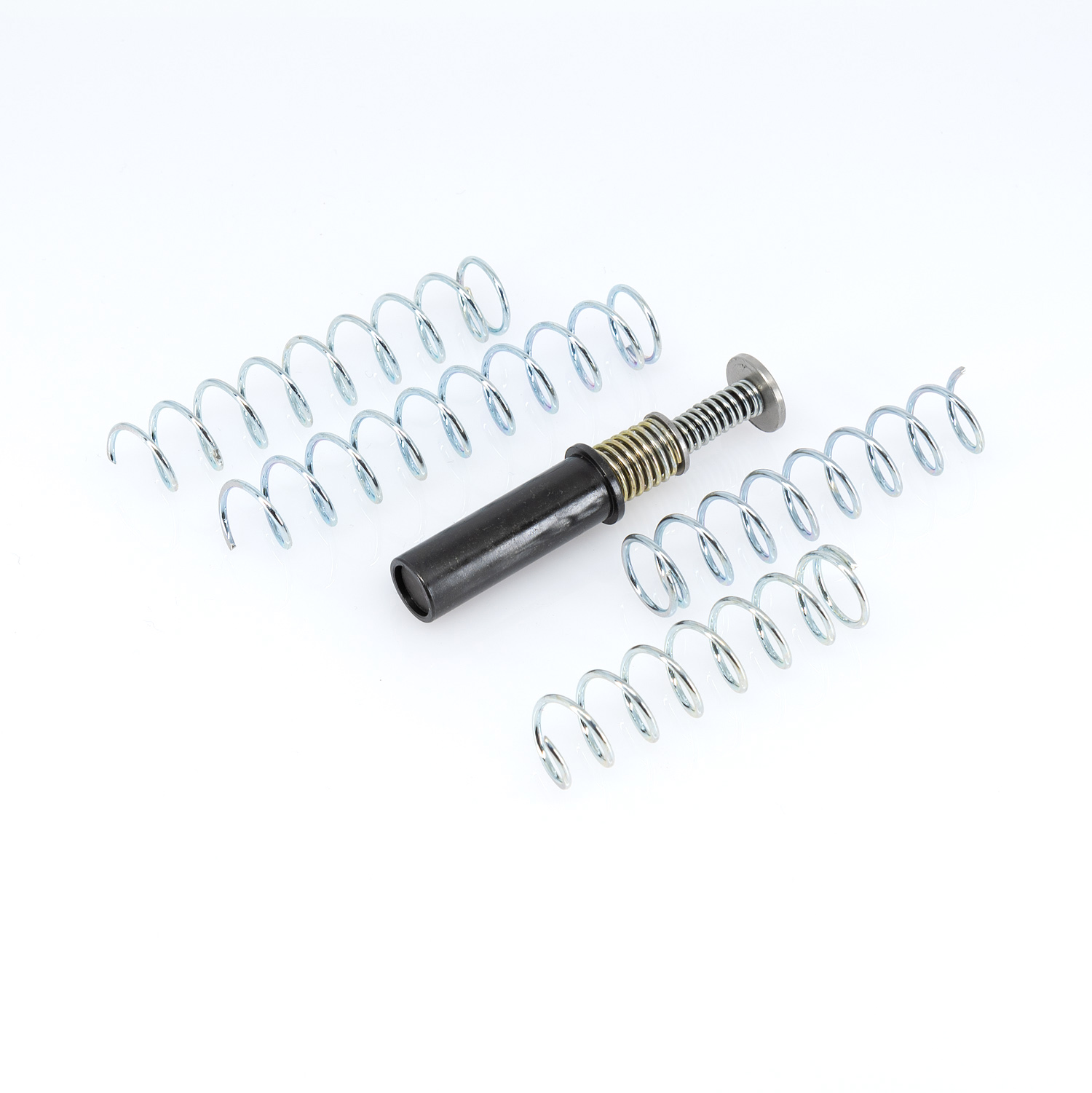

The 3 springs of the system are aligned and gradually compressed, so as to offer an elastic effect of the slide travel and to control the movement of the slide, so it never rams on the frame. The system includes 4 external springs (2 x 1.15mm wire diameter and 2 x 1.2mm wire diameter), all with different power rates, with the longer spring always being the stronger, so the shooter can fine tune the pistol recoil with different type of ammunition according to his/hers personal standards.
Power Rates
Soft Spring 1.15mm
Slide on the battery (idle position)
- Short: 3.9kg / 8.6 lbs
- Long: 4.2kg / 9.25lbs
Slide full open position (appox.)
- Short: 5.5kg / 12.1lbs
- Long: 6kg / 13.2lbs
Spring 1.2mm
Slide on the battery (idle position)
- Short: 4kg / 8.8lbs
- Long: 4.4kg / 9.7lbs
Slide full open position (appox.)
- Short: 6,5kg / 14.3lbs
- Long: 7kg / 15.4lbs
Warning: Do not try to modify the guide rod by any action as it will lead to permanent damage of your system.
Overall Advantages
- Faster follow up shots
- Improved firing speed
- Slide and Frame Protection
- Elimination of jams
- Significant recoil reduction
- Better double-tap concentration
- Better control and greater accuracy
Millions of our patented products are in service to military and law enforcement pistols and sports shooter’s pistols around the world.
Lifetime Warranty for unlimited usage rounds.
