Description

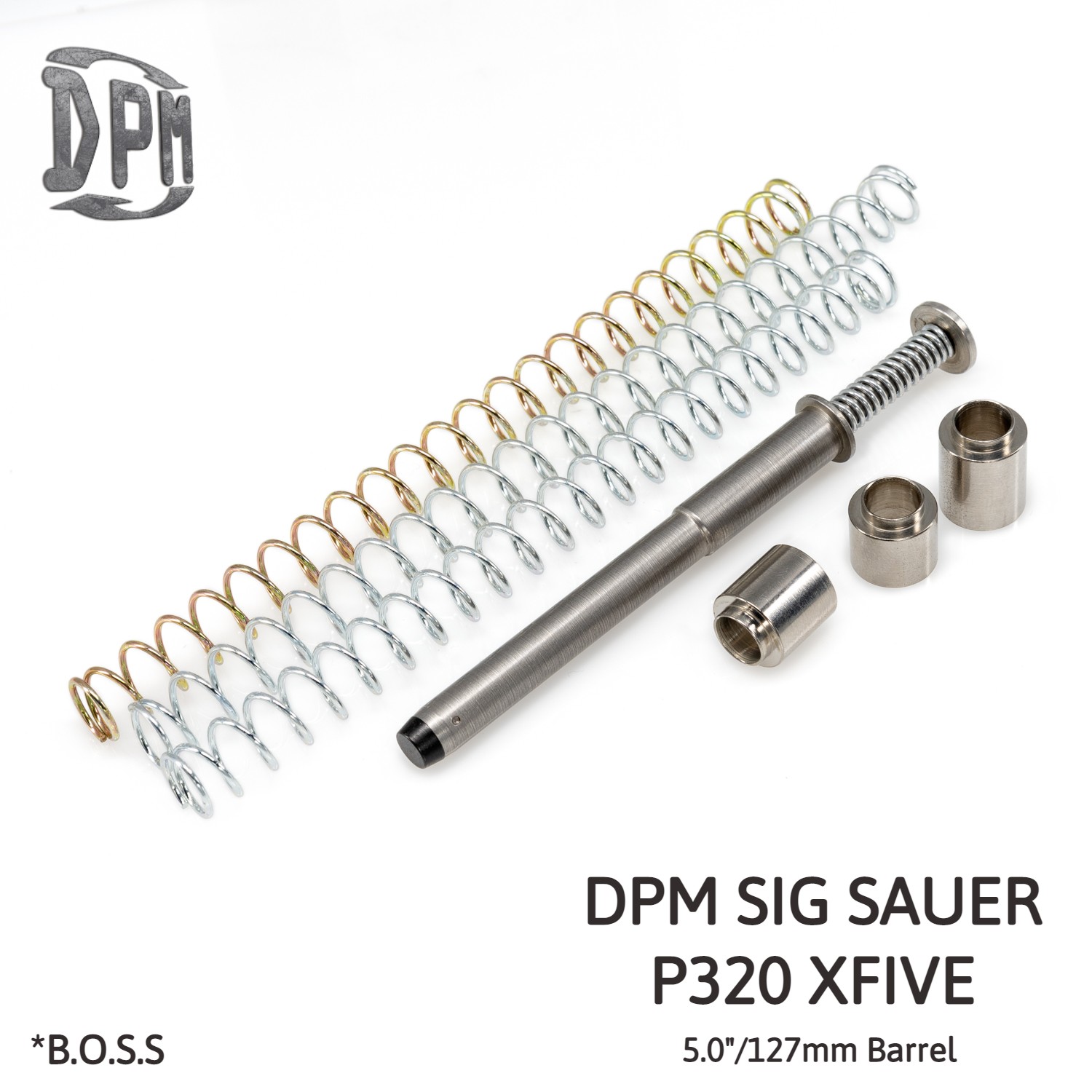

DPM Mechanical Recoil Reduction System for Sig Sauer P320 X-Five
The Mechanical Recoil Rod Reducer System is a direct replacement for the stock recoil rod and does not change the configuration of the gun.
This system works due to the multi spring intricate rod (3 springs) and controls the functionality of the pistol. The third spring which is contained within the rod controls the movement of the slide so it never rams on the frame.
Also included with the system are 3 Spring Plugs and 3 External Springs so the user can fine-tune the weapon for his/hers personal standards. The longer spring (more coils) is stronger and has a heavier pound rating than the shorter spring. The Spring Plugs because of the different length change the total force of the recoil system (slide full open position).
The Spring Plug must always be installed when the DPM Recoil Rod and Springs are used.
Power Rates
Slide on the battery (idle position)
Short: 3.7 kg / 8.1 lbs
Medium: 4 kg / 8.8 lbs
Long: 4.3 kg / 9.4 lbs
Total power (slide full open position)
Short Plug: 10.7 kg / 23.5 lbs approx.
Medium Plug: 12.2 kg / 26.8 lbs approx.
Long Plug: 14 kg / 30.8 lbs approx.
Overall Advantages
- Faster follow up shots
- Improved firing speed
- Slide and Frame Protection
- Elimination of jams
- Significant recoil reduction
- Better double-tap concentration
- Better control and greater accuracy
